[Unreal] [Editor] Slate를 이용한 커스텀 에디터 List View 제작
AlgorFati
2020. 6. 29. 14:47
Slate List View
Slate ListView 예제이다.

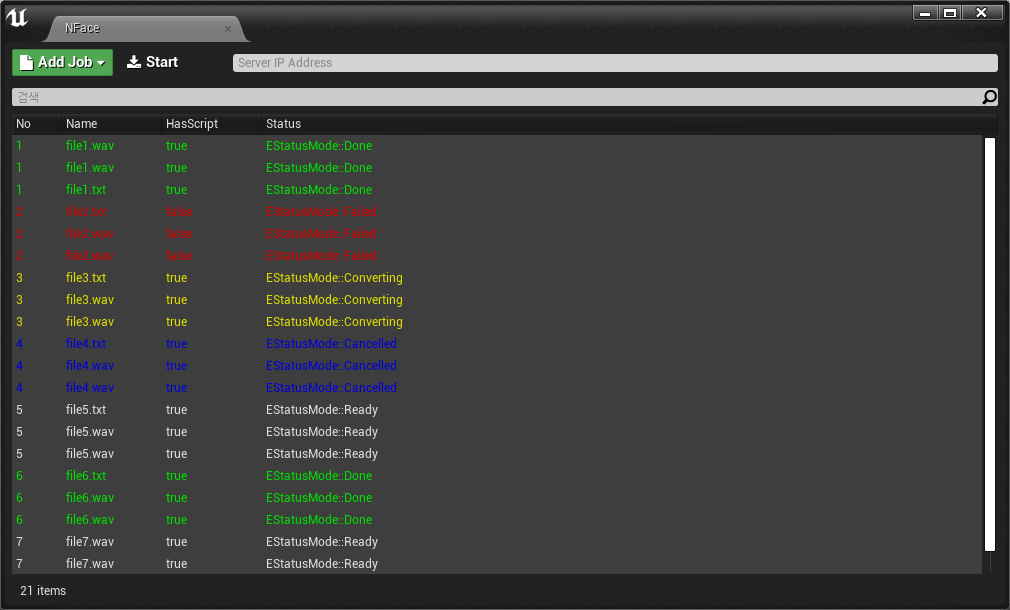

다음과 같은 ui를 제작 할 수 있다.
SMyListViewWidget.h
#pragma once
#include "CoreMinimal.h"
#include "SlateFwd.h"
#include "SlateBasics.h"
#include "Widgets/DeclarativeSyntaxSupport.h"
#include "Input/Reply.h"
#include "Widgets/SWidget.h"
#include "Widgets/SCompoundWidget.h"
#include "Widgets/Views/STableViewBase.h"
#include "Widgets/Views/STableRow.h"
#include "Widgets/Input/SComboButton.h"
#include "Widgets/SWindow.h"
#include "Widgets/Views/SListView.h"
//////////////////////////////////////////////////////////////////////////
// Data
UENUM(BlueprintType)
enum class EStatusMode : uint8
{
Done,
Failed,
Converting,
Ready,
Cancelled,
Cancelling
};
class FMyListRowInfo
{
public:
int Number;
FString WaveFileName;
bool HasScript;
EStatusMode Status;
// Static function for creating a new item, but ensures that you can only have a TSharedRef to one
static TSharedRef<FMyListRowInfo> Make(
int Number,
FString WaveFileName,
bool HasScript,
EStatusMode Status)
{
return MakeShareable(new FMyListRowInfo(Number, WaveFileName, HasScript, Status));
}
int GetNumber() const
{
return Number;
}
FString GetWaveFileName() const
{
return WaveFileName;
}
bool GetHasScript() const
{
return HasScript;
}
FString GetHasScriptAsString() const
{
return HasScript ? FString(TEXT("true")) : FString(TEXT("false"));
}
EStatusMode GetStatus() const
{
return Status;
}
FString GetStatusAsString() const
{
const TEnumAsByte<EStatusMode> StatusEnum = Status;
FString EnumAsName = UEnum::GetValueAsString(StatusEnum.GetValue());
return EnumAsName;
}
protected:
// Hidden constructor, always use Make above
FMyListRowInfo(
int Number,
FString WaveFileName,
bool HasScript,
EStatusMode Status)
:
Number(Number),
WaveFileName(WaveFileName),
HasScript(HasScript),
Status(Status)
{}
// Hidden constructor, always use Make above
FMyListRowInfo() {}
};
typedef TSharedPtr< FMyListRowInfo > FMyListRowInfoPtr;
typedef SListView<FMyListRowInfoPtr> SMyListView;
//////////////////////////////////////////////////////////////////////////
// List Row
DECLARE_DELEGATE_RetVal(FText, FOnGetText)
DECLARE_DELEGATE_RetVal(FText&, FOnGetFilteredText)
DECLARE_DELEGATE_TwoParams(FOnRefreshListView, const FString&, TArray<TSharedPtr<FMyListRowInfo>>&)
class SMyListRow
: public SMultiColumnTableRow< FMyListRowInfoPtr >
{
public:
SLATE_BEGIN_ARGS(SMyListRow) {}
// The item for this row
SLATE_ARGUMENT(FMyListRowInfoPtr, Item)
// Widget used to display the list of retarget sources
SLATE_ARGUMENT(TSharedPtr<SMyListView>, ListView)
SLATE_EVENT(FOnGetFilteredText, OnGetFilteredText)
SLATE_END_ARGS()
void Construct(const FArguments& InArgs, const TSharedRef<STableViewBase>& OwnerTableView);
// Overridden from SMultiColumnTableRow.
// Generates a widget for this column of the tree row.
virtual TSharedRef<SWidget> GenerateWidgetForColumn(const FName& ColumnName) override;
private:
FText GetFilterText() const;
private:
// Widget used to display the list of retarget sources
TSharedPtr<SMyListView> ListView;
// The name and weight of the retarget source
FMyListRowInfoPtr Item;
FOnGetFilteredText OnGetFilteredTextDelegate;
};
//////////////////////////////////////////////////////////////////////////
// Convert Widget
class MYPLUGIN_API SMyListViewWidget : public SCompoundWidget
{
public:
SLATE_BEGIN_ARGS(SMyListViewWidget)
: _ShowViewOptionsComboBtn(false)
{}
SLATE_EVENT(FOnRefreshListView, OnRefreshListView)
SLATE_ARGUMENT(bool, ShowViewOptionsComboBtn)
SLATE_END_ARGS()
void Construct(const FArguments& InArgs);
void RefreshListView();
private:
FText GetAssetCountText() const;
//------------------------------------- Add Job Combo Button --------------------------------------//
TSharedRef<SWidget> CreateAddJobComboBtn() const;
TSharedRef<SWidget> OnGetAddJobBtnMenuContent() const;
void OnExecuteFromAudioAction();
//-------------------------------------------------------------------------------------------------//
//----------------------------------------- Start Button ------------------------------------------//
TSharedRef<SWidget> CreateStartBtn();
FReply OnStartButtonClicked();
void SetStartButtonText(const FText& Text);
//-------------------------------------------------------------------------------------------------//
//-------------------------------------- IP Address EditBox ---------------------------------------//
TSharedRef<SWidget> CreateIPAddressEditBox() const;
void OnTextChanged(const FText& NewText);
void OnTextCommitted(const FText& NewText, ETextCommit::Type CommitType);
//-------------------------------------------------------------------------------------------------//
//---------------------------------------- Item SearchBox -----------------------------------------//
TSharedRef<SWidget> CreateItemSearchBox();
void OnItemSearchBoxTextChanged(const FText& SearchText);
void OnItemSearchBoxTextCommitted(const FText& SearchText, ETextCommit::Type CommitInfo);
//--------------------------------------------------------------------------------------------------//
//------------------------------------------- List View --------------------------------------------//
TSharedRef<SWidget> CreateListView();
TSharedRef<ITableRow> GenerateListRow(
FMyListRowInfoPtr InInfo, const TSharedRef<STableViewBase>& OwnerTable);
TSharedPtr<SWidget> OnContextMenuOpening();
void OnExecuteRemove();
void OnExecuteLocateAsset();
void OnExecuteOpenAnimSeq();
void OnExecuteRecheck();
void OnExecuteLocateAudio();
void OnExecuteOpenAudio();
void OnExecuteOpenScript();
// search box text for filter row items in list view
FText& GetFilterListRowText() { return FilterListRowText; }
//--------------------------------------------------------------------------------------------------//
//----------------------------------- View Options Combo Button ------------------------------------//
TSharedRef<SWidget> CreateViewOptionsComboBtn();
FSlateColor GetViewButtonForegroundColor() const;
TSharedRef<SWidget> OnGetViewBtnMenuContent() const;
void SetCurrentViewTypeFromMenu(int NewType);
bool IsCurrentViewType(int ViewType) const;
//--------------------------------------------------------------------------------------------------//
private:
TSharedPtr<SSearchBox> NameFilterSearchBox;
TSharedPtr<SMyListView> ListView;
TArray<FMyListRowInfoPtr> DataList;
FText FilterListRowText;
// The button that displays view options
TSharedPtr<SComboButton> ViewOptionsComboButton;
TSharedPtr<STextBlock> StartBtnText;
FOnRefreshListView OnRefreshListViewDelegate;
};
SMyListViewWidget.cpp
#include "SMyListViewWidget.h"
#include "Misc/MessageDialog.h"
#include "Modules/ModuleManager.h"
#include "Widgets/SWindow.h"
#include "Editor.h"
#include "EditorStyleSet.h"
#include "Widgets/Input/SButton.h"
#include "AssetNotifications.h"
#include "Animation/Rig.h"
#include "Widgets/Input/SSearchBox.h"
#include "Widgets/Images/SImage.h"
#include "Widgets/Text/SInlineEditableTextBlock.h"
#include "Framework/MultiBox/MultiBoxBuilder.h"
#include "Framework/Notifications/NotificationManager.h"
#include "Widgets/Notifications/SNotificationList.h"
#include "EditorFontGlyphs.h" // EditorStyle
#define LOCTEXT_NAMESPACE "ContentBrowser"
static const FName ColumnId_NumberLabel("Number");
static const FName ColumnID_NameLabel("Name");
static const FName ColumnID_ScriptLabel("Script");
static const FName ColumnID_StatusLabel("Status");
void SMyListRow::Construct(const FArguments& InArgs, const TSharedRef<STableViewBase>& InOwnerTableView)
{
this->Item = InArgs._Item;
this->ListView = InArgs._ListView;
this->OnGetFilteredTextDelegate = InArgs._OnGetFilteredText;
check(this->Item.IsValid());
SMultiColumnTableRow<FMyListRowInfoPtr>::Construct(
FSuperRowType::FArguments()
.Style(FEditorStyle::Get(), "TableView.DarkRow"),
InOwnerTableView);
}
TSharedRef<SWidget> SMyListRow::GenerateWidgetForColumn(const FName& ColumnName)
{
TSharedPtr< SInlineEditableTextBlock > InlineWidget;
TSharedRef< SWidget > NewWidget =
SNew(SVerticalBox)
+ SVerticalBox::Slot()
.AutoHeight()
.Padding(4.0f, 4.0f)
.VAlign(VAlign_Center)
[
SAssignNew(InlineWidget, SInlineEditableTextBlock)
.HighlightText(this, &SMyListRow::GetFilterText)
.IsReadOnly(true)
.IsSelected(this, &SMultiColumnTableRow<FMyListRowInfoPtr>::IsSelectedExclusively)
];
// set color
if (this->Item->GetStatus() == EStatusMode::Done)
{
InlineWidget->SetColorAndOpacity(FLinearColor::Green);
}
if (this->Item->GetStatus() == EStatusMode::Failed)
{
InlineWidget->SetColorAndOpacity(FLinearColor::Red);
}
if (this->Item->GetStatus() == EStatusMode::Converting)
{
InlineWidget->SetColorAndOpacity(FLinearColor::Yellow);
}
if (this->Item->GetStatus() == EStatusMode::Cancelled)
{
InlineWidget->SetColorAndOpacity(FLinearColor::Blue);
}
// set text
if (ColumnName == ColumnId_NumberLabel)
{
// Attribute를 이용하면 값만 바뀌는 상황에서 ui를 다시 생성하지 않고,
// 다시 값을 참조하여 화면에 그려줄 수 있다.
TAttribute<FText> Attribute = TAttribute<FText>::Create(
FOnGetText::CreateLambda(
[this]
{
return FText::FromString(FString::FromInt(this->Item->Number));
}
));
InlineWidget->SetText(Attribute);
//InlineWidget->SetText(FText::FromString(FString::FromInt(this->Item->Number)));
}
else
{
FString DisplayText;
if (ColumnName == ColumnID_NameLabel)
{
DisplayText = this->Item->GetWaveFileName();
}
else if (ColumnName == ColumnID_ScriptLabel)
{
DisplayText = this->Item->GetHasScriptAsString();
}
else
{
DisplayText = this->Item->GetStatusAsString();
}
InlineWidget->SetText(FText::FromString(DisplayText));
}
return NewWidget;
}
FText SMyListRow::GetFilterText() const
{
if (this->OnGetFilteredTextDelegate.IsBound())
{
return this->OnGetFilteredTextDelegate.Execute();
}
return FText::GetEmpty();
}
//////////////////////////////////////////////////////////////////////////
// SNFaceJobListWidget
void SMyListViewWidget::Construct(const FArguments& InArgs)
{
this->OnRefreshListViewDelegate = InArgs._OnRefreshListView;
TSharedPtr<SHorizontalBox> ViewOptionsHBox;
this->ChildSlot
[
SNew(SVerticalBox)
+ SVerticalBox::Slot()
.AutoHeight()
.Padding(5)
[
SNew(SHorizontalBox)
+ SHorizontalBox::Slot()
.AutoWidth()
.VAlign(VAlign_Center)
.HAlign(HAlign_Left)
[
CreateAddJobComboBtn()
]
+ SHorizontalBox::Slot()
.AutoWidth()
.VAlign(VAlign_Center)
.HAlign(HAlign_Left)
.Padding(6, 0)
[
CreateStartBtn()
]
+ SHorizontalBox::Slot()
.VAlign(VAlign_Center)
.Padding(40, 0, 0, 0)
[
CreateIPAddressEditBox()
]
]
+ SVerticalBox::Slot()
.FillHeight(1.0f)
.Padding(5)
[
SNew(SVerticalBox)
+ SVerticalBox::Slot()
.AutoHeight()
.Padding(0, 2)
[
SNew(SHorizontalBox)
+ SHorizontalBox::Slot()
.FillWidth(1)
[
CreateItemSearchBox()
]
]
+ SVerticalBox::Slot()
.FillHeight(1.0f) // This is required to make the scrollbar work, as content overflows Slate containers by default
.Padding(0, 5, 0, 0)
[
CreateListView()
]
]
// bottom tool bar
+ SVerticalBox::Slot()
.Padding(5)
.AutoHeight()
[
SAssignNew(ViewOptionsHBox, SHorizontalBox)
// Asset count
+ SHorizontalBox::Slot()
.FillWidth(1.f)
.VAlign(VAlign_Center)
.Padding(8, 0)
[
SNew(STextBlock)
.Text(this, &SMyListViewWidget::GetAssetCountText)
]
]
];
if (InArgs._ShowViewOptionsComboBtn)
{
// View mode combo button
ViewOptionsHBox->AddSlot()
.AutoWidth()
[
CreateViewOptionsComboBtn()
];
}
RefreshListView();
}
void SMyListViewWidget::RefreshListView()
{
this->OnRefreshListViewDelegate.ExecuteIfBound(this->FilterListRowText.ToString(), this->DataList);
this->ListView->RequestListRefresh();
}
FText SMyListViewWidget::GetAssetCountText() const
{
const int32 NumAssets = this->DataList.Num();
FText AssetCount = FText::GetEmpty();
AssetCount = FText::Format(
LOCTEXT("AssetCountLabelPluralPlusSelection", "{0} items"),
FText::AsNumber(NumAssets));
return AssetCount;
}
//------------------------------------- Add Job Combo Button --------------------------------------//
TSharedRef<SWidget> SMyListViewWidget::CreateAddJobComboBtn() const
{
return SNew(SComboButton)
.ComboButtonStyle(FEditorStyle::Get(), "ToolbarComboButton")
.ButtonStyle(FEditorStyle::Get(), "FlatButton.Success")
.ForegroundColor(FLinearColor::White)
.ContentPadding(FMargin(6, 2))
.OnGetMenuContent(this, &SMyListViewWidget::OnGetAddJobBtnMenuContent)
//.ToolTipText(this, &SContentBrowser::GetAddNewToolTipText)
.AddMetaData<FTagMetaData>(FTagMetaData(TEXT("ContentBrowserNewAsset")))
.HasDownArrow(false)
.ButtonContent()
[
SNew(SHorizontalBox)
// New Icon
+ SHorizontalBox::Slot()
.VAlign(VAlign_Center)
.AutoWidth()
[
SNew(STextBlock)
.TextStyle(FEditorStyle::Get(), "ContentBrowser.TopBar.Font")
.Font(FEditorStyle::Get().GetFontStyle("FontAwesome.11"))
.Text(FEditorFontGlyphs::File)
]
// New Text
+ SHorizontalBox::Slot()
.AutoWidth()
.VAlign(VAlign_Center)
.Padding(4, 0, 0, 0)
[
SNew(STextBlock)
.TextStyle(FEditorStyle::Get(), "ContentBrowser.TopBar.Font")
.Text(LOCTEXT("AddJobButton", "Add Job"))
]
// Down Arrow
+ SHorizontalBox::Slot()
.VAlign(VAlign_Center)
.AutoWidth()
.Padding(4, 0, 0, 0)
[
SNew(STextBlock)
.TextStyle(FEditorStyle::Get(), "ContentBrowser.TopBar.Font")
.Font(FEditorStyle::Get().GetFontStyle("FontAwesome.10"))
.Text(FEditorFontGlyphs::Caret_Down)
]
];
}
TSharedRef<SWidget> SMyListViewWidget::OnGetAddJobBtnMenuContent() const
{
TArray<TSharedPtr<FExtender>> Extenders;
TSharedPtr<FExtender> MenuExtender = FExtender::Combine(Extenders);
FMenuBuilder MenuBuilder(true, NULL, MenuExtender, true);
MenuBuilder.BeginSection("ConversionSection", LOCTEXT("ConversionText", "Conversion"));
{
MenuBuilder.AddMenuEntry(
LOCTEXT("FromAudioOption", "From Audio (.wav)"),
LOCTEXT("FromAudioOptionToolTip", "~~~~~~~~~~~ tips here ~~~~~~~~~~~~"),
FSlateIcon(),
FUIAction(
FExecuteAction::CreateSP(this, &SMyListViewWidget::OnExecuteFromAudioAction)
),
NAME_None,
EUserInterfaceActionType::Button
);
}
MenuBuilder.EndSection();
return MenuBuilder.MakeWidget();
}
void SMyListViewWidget::OnExecuteFromAudioAction()
{
UE_LOG(LogTemp, Warning, TEXT("#### OnExecuteFromAudioAction ####"));
}
//-------------------------------------------------------------------------------------------------//
//----------------------------------------- Start Button ------------------------------------------//
TSharedRef<SWidget> SMyListViewWidget::CreateStartBtn()
{
return SNew(SButton)
.ButtonStyle(FEditorStyle::Get(), "FlatButton")
//.ToolTipText(this, &SContentBrowser::GetImportTooltipText)
.OnClicked(this, &SMyListViewWidget::OnStartButtonClicked)
.ContentPadding(FMargin(6, 2))
.AddMetaData<FTagMetaData>(FTagMetaData(TEXT("ContentBrowserImportAsset")))
[
SNew(SHorizontalBox)
// Import Icon
+ SHorizontalBox::Slot()
.VAlign(VAlign_Center)
.AutoWidth()
[
SNew(STextBlock)
.TextStyle(FEditorStyle::Get(), "ContentBrowser.TopBar.Font")
.Font(FEditorStyle::Get().GetFontStyle("FontAwesome.11"))
.Text(FEditorFontGlyphs::Download)
]
// Import Text
+ SHorizontalBox::Slot()
.AutoWidth()
.VAlign(VAlign_Center)
.Padding(4, 0, 0, 0)
[
SAssignNew(StartBtnText, STextBlock)
.TextStyle(FEditorStyle::Get(), "ContentBrowser.TopBar.Font")
.Text(LOCTEXT("StartButton", "Start"))
]
];
}
FReply SMyListViewWidget::OnStartButtonClicked()
{
UE_LOG(LogTemp, Warning, TEXT("#### OnStartButtonClicked ####"));
FMessageDialog::Open(
EAppMsgType::Ok,
LOCTEXT("Warning Message", "Write Your Message!!"));
return FReply::Handled();
}
// LOCTEXT("StopButton", "Stop")
// LOCTEXT("StartButton", "Start")
void SMyListViewWidget::SetStartButtonText(const FText& Text)
{
StartBtnText->SetText(Text);
}
//-------------------------------------------------------------------------------------------------//
//-------------------------------------- IP Address EditBox ---------------------------------------//
TSharedRef<SWidget> SMyListViewWidget::CreateIPAddressEditBox() const
{
return SNew(SEditableTextBox)
.HintText(LOCTEXT("IPTextBox", "Server IP Address"))
.OnTextChanged(this, &SMyListViewWidget::OnTextChanged)
.OnTextCommitted(this, &SMyListViewWidget::OnTextCommitted)
;
}
void SMyListViewWidget::OnTextChanged(const FText& NewText)
{
UE_LOG(LogTemp, Warning, TEXT("#### OnTextChanged #### %s"), *NewText.ToString());
}
void SMyListViewWidget::OnTextCommitted(const FText& NewText, ETextCommit::Type CommitType)
{
UE_LOG(LogTemp, Warning, TEXT("#### OnTextCommitted #### %s %d"), *NewText.ToString(), CommitType);
}
//-------------------------------------------------------------------------------------------------//
//---------------------------------------- Item SearchBox -----------------------------------------//
TSharedRef<SWidget> SMyListViewWidget::CreateItemSearchBox()
{
return SAssignNew(this->NameFilterSearchBox, SSearchBox)
.SelectAllTextWhenFocused(true)
.OnTextChanged(this, &SMyListViewWidget::OnItemSearchBoxTextChanged)
.OnTextCommitted(this, &SMyListViewWidget::OnItemSearchBoxTextCommitted);
}
void SMyListViewWidget::OnItemSearchBoxTextChanged(const FText& SearchText)
{
// need to make sure not to have the same text go
// otherwise, the widget gets recreated multiple times causing
// other issue
if (this->FilterListRowText.CompareToCaseIgnored(SearchText) != 0)
{
this->FilterListRowText = SearchText;
RefreshListView();
}
}
void SMyListViewWidget::OnItemSearchBoxTextCommitted(const FText& SearchText, ETextCommit::Type CommitInfo)
{
// Just do the same as if the user typed in the box
OnItemSearchBoxTextChanged(SearchText);
}
//--------------------------------------------------------------------------------------------------//
//------------------------------------------- List View --------------------------------------------//
TSharedRef<SWidget> SMyListViewWidget::CreateListView()
{
return SAssignNew(this->ListView, SMyListView)
.OnGenerateRow(this, &SMyListViewWidget::GenerateListRow)
.ListItemsSource(&this->DataList)
.OnContextMenuOpening(this, &SMyListViewWidget::OnContextMenuOpening)
.ItemHeight(24)
.Visibility(EVisibility::Visible)
.HeaderRow(
SNew(SHeaderRow)
+ SHeaderRow::Column(ColumnId_NumberLabel)
.DefaultLabel(LOCTEXT("MyFaceConvert_NumberLabel", "No"))
.ManualWidth(50.f)
+ SHeaderRow::Column(ColumnID_NameLabel)
.DefaultLabel(LOCTEXT("MyFaceConvert_NameLabel", "Name"))
.ManualWidth(100.f)
+ SHeaderRow::Column(ColumnID_ScriptLabel)
.DefaultLabel(LOCTEXT("MyFaceConvert_ScriptLabel", "HasScript"))
.ManualWidth(100.f)
+ SHeaderRow::Column(ColumnID_StatusLabel)
.DefaultLabel(LOCTEXT("MyFaceConvert_StatusLabel", "Status"))
);
}
TSharedRef<ITableRow> SMyListViewWidget::GenerateListRow(
FMyListRowInfoPtr InInfo,
const TSharedRef<STableViewBase>& OwnerTable)
{
check(InInfo.IsValid());
return SNew(SMyListRow, OwnerTable)
.Item(InInfo)
.ListView(ListView)
.OnGetFilteredText(this, &SMyListViewWidget::GetFilterListRowText)
;
}
TSharedPtr<SWidget> SMyListViewWidget::OnContextMenuOpening()
{
TArray<TSharedPtr<FExtender>> Extenders;
TSharedPtr<FExtender> MenuExtender = FExtender::Combine(Extenders);
FMenuBuilder MenuBuilder(true, NULL, MenuExtender, true);
MenuBuilder.BeginSection("JobListSection", LOCTEXT("JobListText", "Job List"));
{
MenuBuilder.AddMenuEntry(
LOCTEXT("RemoveOption", "Remove from List"),
LOCTEXT("RemoveOptionToolTip", "~~~~~~~~~~~ tips here ~~~~~~~~~~~~"),
FSlateIcon(),
FUIAction(
FExecuteAction::CreateSP(this, &SMyListViewWidget::OnExecuteRemove)
),
NAME_None,
EUserInterfaceActionType::Button
);
}
MenuBuilder.EndSection();
MenuBuilder.BeginSection("OutputSection", LOCTEXT("OutputText", "Output"));
{
MenuBuilder.AddMenuEntry(
LOCTEXT("LocateAssetOption", "Locate Asset in Content Browser"),
LOCTEXT("LocateAssetOptionToolTip", "~~~~~~~~~~~ tips here ~~~~~~~~~~~~"),
FSlateIcon(),
FUIAction(
FExecuteAction::CreateSP(this, &SMyListViewWidget::OnExecuteLocateAsset)
),
NAME_None,
EUserInterfaceActionType::Button
);
MenuBuilder.AddMenuEntry(
LOCTEXT("OpenAnimSeqOption", "Open AnimSequence"),
LOCTEXT("OpenAnimSeqOptionToolTip", "~~~~~~~~~~~ tips here ~~~~~~~~~~~~"),
FSlateIcon(),
FUIAction(
FExecuteAction::CreateSP(this, &SMyListViewWidget::OnExecuteOpenAnimSeq)
),
NAME_None,
EUserInterfaceActionType::Button
);
}
MenuBuilder.EndSection();
MenuBuilder.BeginSection("SourceSection", LOCTEXT("SourceText", "Source"));
{
MenuBuilder.AddMenuEntry(
LOCTEXT("RecheckOption", "Recheck Files"),
LOCTEXT("RecheckOptionToolTip", "~~~~~~~~~~~ tips here ~~~~~~~~~~~~"),
FSlateIcon(),
FUIAction(
FExecuteAction::CreateSP(this, &SMyListViewWidget::OnExecuteRecheck)
),
NAME_None,
EUserInterfaceActionType::Button
);
MenuBuilder.AddMenuEntry(
LOCTEXT("LocateAudioOption", "Locate Audio in Explorer"),
LOCTEXT("LocateAudioOptionToolTip", "~~~~~~~~~~~ tips here ~~~~~~~~~~~~"),
FSlateIcon(),
FUIAction(
FExecuteAction::CreateSP(this, &SMyListViewWidget::OnExecuteLocateAudio)
),
NAME_None,
EUserInterfaceActionType::Button
);
MenuBuilder.AddMenuEntry(
LOCTEXT("OpenAudioOption", "Open Audio (.wav)"),
LOCTEXT("OpenAudioOptionToolTip", "~~~~~~~~~~~ tips here ~~~~~~~~~~~~"),
FSlateIcon(),
FUIAction(
FExecuteAction::CreateSP(this, &SMyListViewWidget::OnExecuteOpenAudio)
),
NAME_None,
EUserInterfaceActionType::Button
);
MenuBuilder.AddMenuEntry(
LOCTEXT("OpenScriptOption", "Open Script (.txt)"),
LOCTEXT("OpenScriptOptionToolTip", "~~~~~~~~~~~ tips here ~~~~~~~~~~~~"),
FSlateIcon(),
FUIAction(
FExecuteAction::CreateSP(this, &SMyListViewWidget::OnExecuteOpenScript)
),
NAME_None,
EUserInterfaceActionType::Button
);
}
MenuBuilder.EndSection();
return MenuBuilder.MakeWidget();
}
void SMyListViewWidget::OnExecuteRemove()
{
//this->ListView->GetSelectedItems();
}
void SMyListViewWidget::OnExecuteLocateAsset()
{
}
void SMyListViewWidget::OnExecuteOpenAnimSeq()
{
}
void SMyListViewWidget::OnExecuteRecheck()
{
}
void SMyListViewWidget::OnExecuteLocateAudio()
{
}
void SMyListViewWidget::OnExecuteOpenAudio()
{
}
void SMyListViewWidget::OnExecuteOpenScript()
{
}
//--------------------------------------------------------------------------------------------------//
//----------------------------------- View Options Combo Button ------------------------------------//
TSharedRef<SWidget> SMyListViewWidget::CreateViewOptionsComboBtn()
{
return SAssignNew(this->ViewOptionsComboButton, SComboButton)
.ContentPadding(0)
.ForegroundColor(this, &SMyListViewWidget::GetViewButtonForegroundColor)
.ButtonStyle(FEditorStyle::Get(), "ToggleButton") // Use the tool bar item style for this button
.OnGetMenuContent(this, &SMyListViewWidget::OnGetViewBtnMenuContent)
.ButtonContent()
[
SNew(SHorizontalBox)
+ SHorizontalBox::Slot()
.AutoWidth()
.VAlign(VAlign_Center)
[
SNew(SImage).Image(FEditorStyle::GetBrush("GenericViewButton"))
]
+ SHorizontalBox::Slot()
.AutoWidth()
.Padding(2, 0, 0, 0)
.VAlign(VAlign_Center)
[
SNew(STextBlock).Text(LOCTEXT("ViewButton", "View Options"))
]
];
}
FSlateColor SMyListViewWidget::GetViewButtonForegroundColor() const
{
static const FName InvertedForegroundName("InvertedForeground");
static const FName DefaultForegroundName("DefaultForeground");
return this->ViewOptionsComboButton->IsHovered() ?
FEditorStyle::GetSlateColor(InvertedForegroundName) : FEditorStyle::GetSlateColor(DefaultForegroundName);
}
TSharedRef<SWidget> SMyListViewWidget::OnGetViewBtnMenuContent() const
{
TArray<TSharedPtr<FExtender>> Extenders;
TSharedPtr<FExtender> MenuExtender = FExtender::Combine(Extenders);
FMenuBuilder MenuBuilder(true, NULL, MenuExtender, true);
MenuBuilder.BeginSection("AssetViewType", LOCTEXT("ViewTypeHeading", "View Type"));
{
MenuBuilder.AddMenuEntry(
LOCTEXT("TileViewOption", "Tiles"),
LOCTEXT("TileViewOptionToolTip", "View assets as tiles in a grid."),
FSlateIcon(),
FUIAction(
FExecuteAction::CreateSP(this, &SMyListViewWidget::SetCurrentViewTypeFromMenu, 0),
FCanExecuteAction(),
FIsActionChecked::CreateSP(this, &SMyListViewWidget::IsCurrentViewType, 0)
),
NAME_None,
EUserInterfaceActionType::RadioButton
);
}
MenuBuilder.EndSection();
return MenuBuilder.MakeWidget();
}
void SMyListViewWidget::SetCurrentViewTypeFromMenu(int NewType)
{
UE_LOG(LogTemp, Warning, TEXT("#### SetCurrentViewTypeFromMenu ####"));
}
bool SMyListViewWidget::IsCurrentViewType(int ViewType) const
{
UE_LOG(LogTemp, Warning, TEXT("#### IsCurrentViewType ####"));
return true;
}
//--------------------------------------------------------------------------------------------------//
#undef LOCTEXT_NAMESPACE
MyPlugin.h
#pragma once
#include "CoreMinimal.h"
#include "Modules/ModuleManager.h"
#include "SMyListViewWidget.h"
class FToolBarBuilder;
class FMenuBuilder;
class FMyPluginModule : public IModuleInterface
{
public:
/** IModuleInterface implementation */
virtual void StartupModule() override;
virtual void ShutdownModule() override;
TSharedRef<SDockTab> OnSpawnPluginTab(const FSpawnTabArgs& SpawnTabArgs);
/** This function will be bound to Command. */
void PluginButtonClicked();
private:
void AddToolbarExtension(FToolBarBuilder& Builder);
void AddMenuExtension(FMenuBuilder& Builder);
void InitConsoleCommand();
void ConsoleCommand(const TArray<FString>& Args);
void OnRefreshListView(
const FString& FilterListRowText, TArray<TSharedPtr<FMyListRowInfo>>& DataList);
private:
TSharedPtr<class FUICommandList> PluginCommands;
TArray<FMyListRowInfoPtr> RealData;
TSharedPtr<SMyListViewWidget> ListView;
};
MyPlugin.cpp
#include "MyPlugin.h"
#include "MyPluginStyle.h"
#include "MyPluginCommands.h"
#include "Misc/MessageDialog.h"
#include "Framework/MultiBox/MultiBoxBuilder.h"
#include "MyPrimaryDataAsset.h"
#include "AssetRegistryModule.h"
#include "UObject/ConstructorHelpers.h"
#include "LevelEditor.h"
#include "EngineUtils.h"
#include "EditorAssetLibrary.h"
#include "MyCustomization.h"
#include "SMyWindow.h"
#include "Widgets/Docking/SDockTab.h"
#include "SMyListViewWidget.h"
static const FName MyPluginTabName("MyPlugin");
#define LOCTEXT_NAMESPACE "FMyPluginModule"
void FMyPluginModule::StartupModule()
{
// This code will execute after your module is loaded into memory; the exact timing is specified in the .uplugin file per-module
FMyPluginStyle::Initialize();
FMyPluginStyle::ReloadTextures();
FMyPluginCommands::Register();
PluginCommands = MakeShareable(new FUICommandList);
PluginCommands->MapAction(
FMyPluginCommands::Get().PluginAction,
FExecuteAction::CreateRaw(this, &FMyPluginModule::PluginButtonClicked),
FCanExecuteAction());
FGlobalTabmanager::Get()->RegisterNomadTabSpawner(
FName("Test"),
FOnSpawnTab::CreateRaw(this, &FMyPluginModule::OnSpawnPluginTab))
.SetDisplayName(LOCTEXT("FNFaceTabTitle", "NFace"))
.SetMenuType(ETabSpawnerMenuType::Hidden);
FLevelEditorModule& LevelEditorModule = FModuleManager::LoadModuleChecked<FLevelEditorModule>("LevelEditor");
{
TSharedPtr<FExtender> MenuExtender = MakeShareable(new FExtender());
MenuExtender->AddMenuExtension("WindowLayout", EExtensionHook::After, PluginCommands, FMenuExtensionDelegate::CreateRaw(this, &FMyPluginModule::AddMenuExtension));
LevelEditorModule.GetMenuExtensibilityManager()->AddExtender(MenuExtender);
}
{
TSharedPtr<FExtender> ToolbarExtender = MakeShareable(new FExtender);
ToolbarExtender->AddToolBarExtension("Settings", EExtensionHook::After, PluginCommands, FToolBarExtensionDelegate::CreateRaw(this, &FMyPluginModule::AddToolbarExtension));
LevelEditorModule.GetToolBarExtensibilityManager()->AddExtender(ToolbarExtender);
}
RealData = {
FMyListRowInfo::Make(1, FString(TEXT("file1.txt")), true, EStatusMode::Done),
FMyListRowInfo::Make(2, FString(TEXT("file2.txt")), false, EStatusMode::Failed),
FMyListRowInfo::Make(3, FString(TEXT("file3.txt")), true, EStatusMode::Converting),
FMyListRowInfo::Make(4, FString(TEXT("file4.txt")), true, EStatusMode::Cancelled),
FMyListRowInfo::Make(5, FString(TEXT("file5.txt")), true, EStatusMode::Ready),
FMyListRowInfo::Make(6, FString(TEXT("file6.txt")), true, EStatusMode::Done),
FMyListRowInfo::Make(7, FString(TEXT("file7.wav")), true, EStatusMode::Ready),
FMyListRowInfo::Make(1, FString(TEXT("file1.wav")), true, EStatusMode::Done),
FMyListRowInfo::Make(2, FString(TEXT("file2.wav")), false, EStatusMode::Failed),
FMyListRowInfo::Make(3, FString(TEXT("file3.wav")), true, EStatusMode::Converting),
FMyListRowInfo::Make(4, FString(TEXT("file4.wav")), true, EStatusMode::Cancelled),
FMyListRowInfo::Make(5, FString(TEXT("file5.wav")), true, EStatusMode::Ready),
FMyListRowInfo::Make(6, FString(TEXT("file6.wav")), true, EStatusMode::Done),
FMyListRowInfo::Make(7, FString(TEXT("file7.wav")), true, EStatusMode::Ready),
FMyListRowInfo::Make(1, FString(TEXT("file1.wav")), true, EStatusMode::Done),
FMyListRowInfo::Make(2, FString(TEXT("file2.wav")), false, EStatusMode::Failed),
FMyListRowInfo::Make(3, FString(TEXT("file3.wav")), true, EStatusMode::Converting),
FMyListRowInfo::Make(4, FString(TEXT("file4.wav")), true, EStatusMode::Cancelled),
FMyListRowInfo::Make(5, FString(TEXT("file5.wav")), true, EStatusMode::Ready),
FMyListRowInfo::Make(6, FString(TEXT("file6.wav")), true, EStatusMode::Done),
FMyListRowInfo::Make(7, FString(TEXT("file7.wav")), true, EStatusMode::Ready),
};
InitConsoleCommand();
}
void FMyPluginModule::ShutdownModule()
{
// This function may be called during shutdown to clean up your module. For modules that support dynamic reloading,
// we call this function before unloading the module.
FMyPluginStyle::Shutdown();
FMyPluginCommands::Unregister();
}
TSharedRef<SDockTab> FMyPluginModule::OnSpawnPluginTab(const FSpawnTabArgs& SpawnTabArgs)
{
return SNew(SDockTab)
.TabRole(ETabRole::NomadTab)
[
// Put your tab content here!
SAssignNew(ListView, SMyListViewWidget)
.OnRefreshListView(FOnRefreshListView::CreateRaw(this, &FMyPluginModule::OnRefreshListView))
];
}
void FMyPluginModule::PluginButtonClicked()
{
FGlobalTabmanager::Get()->InvokeTab(FName("Test"));
}
void FMyPluginModule::AddMenuExtension(FMenuBuilder& Builder)
{
Builder.AddMenuEntry(FMyPluginCommands::Get().PluginAction);
}
void FMyPluginModule::AddToolbarExtension(FToolBarBuilder& Builder)
{
Builder.AddToolBarButton(FMyPluginCommands::Get().PluginAction);
}
// call this from start - ex) gamemode being
void FMyPluginModule::InitConsoleCommand()
{
FConsoleCommandWithArgsDelegate Delegate;
Delegate.BindRaw(this, &FMyPluginModule::ConsoleCommand);
IConsoleManager::Get().RegisterConsoleCommand(
TEXT("insooneelifeCmd"),
TEXT("insooneelife test cmd"), Delegate);
}
// this is static function
void FMyPluginModule::ConsoleCommand(const TArray<FString>& Args)
{
for (auto& Data : this->RealData)
{
Data->WaveFileName = FString(TEXT("Modified"));
}
ListView->RefreshListView();
}
void FMyPluginModule::OnRefreshListView(
const FString& FilterListRowText, TArray<TSharedPtr<FMyListRowInfo>>& DataList)
{
FString SearchText = FilterListRowText;
DataList.Empty();
bool bDoFiltering = !SearchText.IsEmpty();
for (const auto Data : RealData)
{
const int Number = Data->GetNumber();
const FString WaveFileName = Data->GetWaveFileName();
const bool HasScript = Data->GetHasScript();
const EStatusMode Status = Data->GetStatus();
const FString HasScriptAsString = Data->GetHasScriptAsString();
const FString StatusAsString = Data->GetStatusAsString();
if (bDoFiltering)
{
// make sure it doens't fit any of them
if (!WaveFileName.Contains(SearchText) &&
!StatusAsString.Contains(SearchText) &&
!HasScriptAsString.Contains(SearchText))
{
continue; // Skip items that don't match our filter
}
}
FMyListRowInfoPtr Info = FMyListRowInfo::Make(Number, WaveFileName, HasScript, Status);
DataList.Add(Info);
}
// Sort
DataList.Sort([](const FMyListRowInfoPtr& A, const FMyListRowInfoPtr& B) {
return A->GetNumber() < B->GetNumber();
});
}
#undef LOCTEXT_NAMESPACE
IMPLEMENT_MODULE(FMyPluginModule, MyPlugin)
