게임 엔진/Unity

[Unity] 전략게임 카메라 제작 방법

2020. 7. 6. 10:24
목차
  1. Strategy Camera

Strategy Camera

Unity에서 전략 시뮬레이션을 위한 카메라를 제작해야하는 경우가 있다.

먼저 Camera Rig로 사용할 GameObject를 하나 생성하고, 그 하위에 MainCamera를 놓는다.

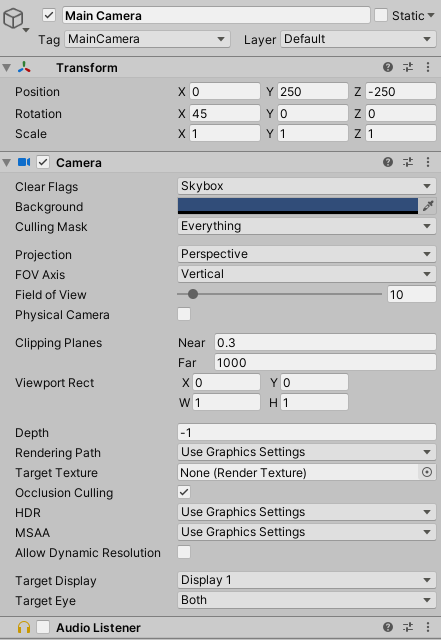

그 후 MainCamera의 값을 다음과 같이 설정한다.



StrategyCameraController.cs

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class StrategyCameraController : MonoBehaviour
{
    public Transform followTransform;
    public Transform cameraTransform;

    public float normalSpeed;
    public float fastSpeed;

    public float movementSpeed;
    public float movementTime;
    public float rotationAmount;
    public Vector3 zoomAmount;

    public Vector3 newPosition;
    public Quaternion newRotation;
    public Vector3 newZoom;

    public Vector3 dragStartPostion;
    public Vector3 dragCurrentPostion;

    public Vector3 rotateStartPosition;
    public Vector3 rotateCurrentPosition;

    // Start is called before the first frame update
    void Start()
    {
        newPosition = transform.position;
        newRotation = transform.rotation;
        newZoom = cameraTransform.localPosition;
    }

    // Update is called once per frame
    void Update()
    {
        if (followTransform != null)
        {
            transform.position = followTransform.position;
        }
        else
        {
            HandleMouseInput();
            HandleMovementInput();
        }

        if (Input.GetKeyDown(KeyCode.Escape))
        {
            followTransform = null;
        }
    }

    void HandleMouseInput()
    {
        if (Input.mouseScrollDelta.y != 0)
        {
            newZoom += Input.mouseScrollDelta.y * zoomAmount;
        }

        if(Input.GetMouseButtonDown(0))
        {
            Plane plane = new Plane(Vector3.up, Vector3.zero);

            Ray ray = Camera.main.ScreenPointToRay(Input.mousePosition);

            float entry;

            if (plane.Raycast(ray, out entry))
            {
                dragStartPostion = ray.GetPoint(entry);
            }
        }

        if (Input.GetMouseButton(0))
        {
            Plane plane = new Plane(Vector3.up, Vector3.zero);

            Ray ray = Camera.main.ScreenPointToRay(Input.mousePosition);

            float entry;

            if (plane.Raycast(ray, out entry))
            {
                dragCurrentPostion = ray.GetPoint(entry);

                newPosition = transform.position + dragStartPostion - dragCurrentPostion;
            }
        }

        if (Input.GetMouseButtonDown(2))
        {
            rotateStartPosition = Input.mousePosition;
        }
        if (Input.GetMouseButton(2))
        {
            rotateCurrentPosition = Input.mousePosition;

            Vector3 difference = rotateStartPosition - rotateCurrentPosition;

            rotateStartPosition = rotateCurrentPosition;

            newRotation *= Quaternion.Euler(Vector3.up * (-difference.x / 5f));
        }

    }

    void HandleMovementInput()
    {
        if (Input.GetKey(KeyCode.LeftShift))
        {
            movementSpeed = fastSpeed;
        }
        else
        {
            movementSpeed = normalSpeed;
        }

        if (Input.GetKey(KeyCode.W) || Input.GetKey(KeyCode.UpArrow))
        {
            newPosition += (transform.forward * movementSpeed);
        }

        if (Input.GetKey(KeyCode.S) || Input.GetKey(KeyCode.DownArrow))
        {
            newPosition += (transform.forward * -movementSpeed);
        }

        if (Input.GetKey(KeyCode.D) || Input.GetKey(KeyCode.RightArrow))
        {
            newPosition += (transform.right * movementSpeed);
        }

        if (Input.GetKey(KeyCode.A) || Input.GetKey(KeyCode.LeftArrow))
        {
            newPosition += (transform.right * -movementSpeed);
        }

        if (Input.GetKey(KeyCode.Q))
        {
            newRotation *= Quaternion.Euler(Vector3.up * rotationAmount);
        }

        if (Input.GetKey(KeyCode.E))
        {
            newRotation *= Quaternion.Euler(Vector3.up * -rotationAmount);
        }

        if (Input.GetKey(KeyCode.R))
        {
            newZoom += zoomAmount;
        }

        if (Input.GetKey(KeyCode.F))
        {
            newZoom -= zoomAmount;
        }

        transform.position = Vector3.Lerp(transform.position, newPosition, Time.deltaTime * movementTime);
        transform.rotation = Quaternion.Lerp(transform.rotation, newRotation, Time.deltaTime * movementTime);
        cameraTransform.localPosition = Vector3.Lerp(cameraTransform.localPosition, newZoom, Time.deltaTime * movementTime);

    }
}
