[Unreal] [Editor] Unreal Plugin 제작 방법

Plugin Start

Unreal plugin 시작방법 예제이다.

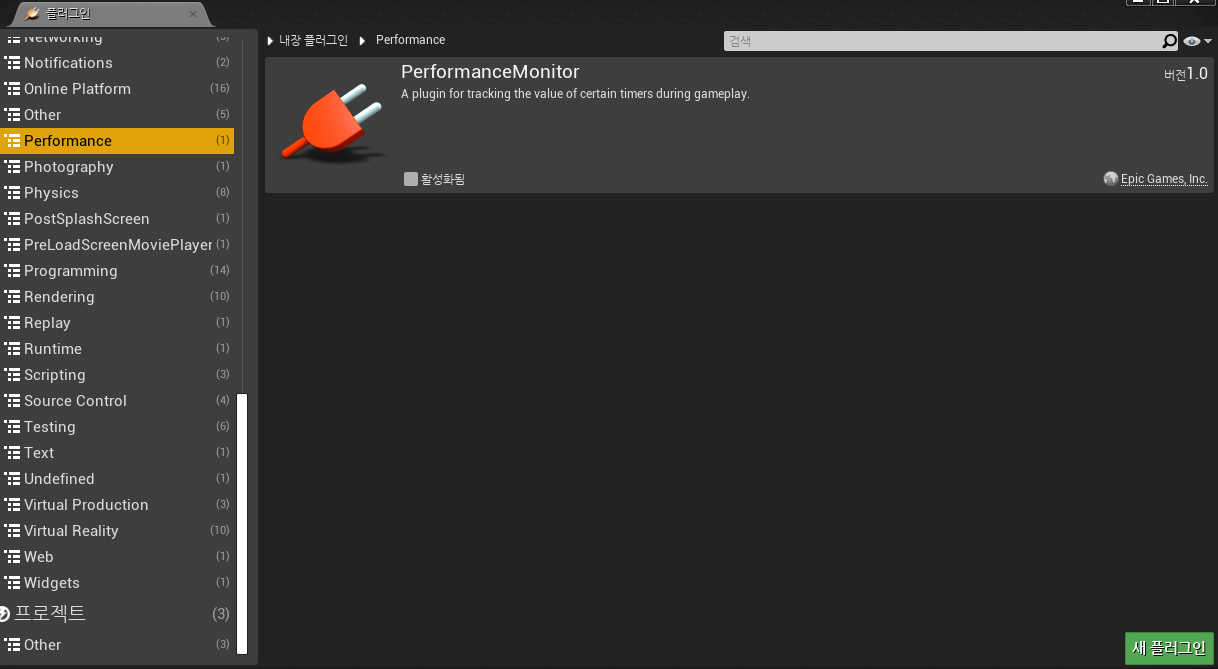

1. 메뉴바 -> 편집 -> 플러그인



2. 오른쪽 하단 새 플러그인 클릭

3. 에디터 툴바를 사용하는 "에디터 툴바 버튼"으로 플러그인 생성 (MyPlugin)



4. 프로젝트 재시작 시 에디터 툴바에 MyPlugin을 확인할 수 있음

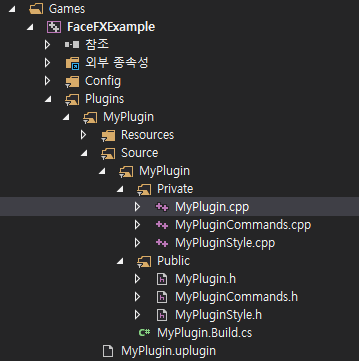

5. 플러그인 소스는 visual studio 프로젝트에서 수정할 수 있음







모듈 기본 코드

Header

#pragma once

#include "CoreMinimal.h"
#include "Modules/ModuleManager.h"

class FToolBarBuilder;
class FMenuBuilder;

class FMyPluginModule : public IModuleInterface
{
public:

	/** IModuleInterface implementation */
	virtual void StartupModule() override;
	virtual void ShutdownModule() override;

	/** This function will be bound to Command. */
	void PluginButtonClicked();

private:

	void AddToolbarExtension(FToolBarBuilder& Builder);
	void AddMenuExtension(FMenuBuilder& Builder);

private:
	TSharedPtr<class FUICommandList> PluginCommands;
};





Source

이부분을 통해 모듈 초기화 함수가 정의되고, 모듈의 초기 세팅이 수행된다.

IMPLEMENT_MODULE(FPluginExampleModule, PluginExample)

// Copyright 1998-2019 Epic Games, Inc. All Rights Reserved.

#include "MyPlugin.h"
#include "MyPluginStyle.h"
#include "MyPluginCommands.h"
#include "Misc/MessageDialog.h"
#include "Framework/MultiBox/MultiBoxBuilder.h"

#include "LevelEditor.h"

static const FName MyPluginTabName("MyPlugin");

#define LOCTEXT_NAMESPACE "FMyPluginModule"

void FMyPluginModule::StartupModule()
{
	// This code will execute after your module is loaded into memory; the exact timing is specified in the .uplugin file per-module

	FMyPluginStyle::Initialize();
	FMyPluginStyle::ReloadTextures();

	FMyPluginCommands::Register();

	PluginCommands = MakeShareable(new FUICommandList);

	PluginCommands->MapAction(
		FMyPluginCommands::Get().PluginAction,
		FExecuteAction::CreateRaw(this, &FMyPluginModule::PluginButtonClicked),
		FCanExecuteAction());

	FLevelEditorModule& LevelEditorModule = FModuleManager::LoadModuleChecked<FLevelEditorModule>("LevelEditor");

	{
		TSharedPtr<FExtender> MenuExtender = MakeShareable(new FExtender());
		MenuExtender->AddMenuExtension("WindowLayout", EExtensionHook::After, PluginCommands, FMenuExtensionDelegate::CreateRaw(this, &FMyPluginModule::AddMenuExtension));

		LevelEditorModule.GetMenuExtensibilityManager()->AddExtender(MenuExtender);
	}

	{
		TSharedPtr<FExtender> ToolbarExtender = MakeShareable(new FExtender);
		ToolbarExtender->AddToolBarExtension("Settings", EExtensionHook::After, PluginCommands, FToolBarExtensionDelegate::CreateRaw(this, &FMyPluginModule::AddToolbarExtension));

		LevelEditorModule.GetToolBarExtensibilityManager()->AddExtender(ToolbarExtender);
	}
}

void FMyPluginModule::ShutdownModule()
{
	// This function may be called during shutdown to clean up your module.  For modules that support dynamic reloading,
	// we call this function before unloading the module.
	FMyPluginStyle::Shutdown();

	FMyPluginCommands::Unregister();
}

void FMyPluginModule::PluginButtonClicked()
{
	// Put your "OnButtonClicked" stuff here
	FText DialogText = FText::Format(
							LOCTEXT("PluginButtonDialogText", "Add code to {0} in {1} to override this button's actions"),
							FText::FromString(TEXT("FMyPluginModule::PluginButtonClicked()")),
							FText::FromString(TEXT("MyPlugin.cpp"))
					   );
	FMessageDialog::Open(EAppMsgType::Ok, DialogText);
}

void FMyPluginModule::AddMenuExtension(FMenuBuilder& Builder)
{
	Builder.AddMenuEntry(FMyPluginCommands::Get().PluginAction);
}

void FMyPluginModule::AddToolbarExtension(FToolBarBuilder& Builder)
{
	Builder.AddToolBarButton(FMyPluginCommands::Get().PluginAction);
}

#undef LOCTEXT_NAMESPACE

IMPLEMENT_MODULE(FMyPluginModule, MyPlugin)





Unreal Plugin에서 dll을 delay load 시 생기는 크래시 이슈

answers.unrealengine.com/questions/401885/delay-load-dlls-causing-breakpoint-1.html
