[Unreal] [Editor] 프로퍼티 에디터 제작 방법

Detail Editor Customization

언리얼 커스텀 에디터를 제작함에 있어서 가장 중요한 부분인 custom property editor를 제작하는 내용이다.

Property editor란 다음과 같이 사용자가 정의한 어떤 데이터의 프로퍼티를 언리얼 ui상에 표시하고, 또 수정할 수 있도록 해주는 editor이다.



Modules

다음 모듈들을 미리 추가해두자.

PrivateDependencyModuleNames.AddRange(
			new string[]
			{
				"Projects",
				"InputCore",
				"UnrealEd",
				"LevelEditor",
				"CoreUObject",
				"Engine",
				"Slate",
				"SlateCore",
				"EditorScriptingUtilities",
				"EditorStyle",
				"DesktopPlatform",
				// ... add private dependencies that you statically link with here ...
			}
			);





데이터 정의 (UMyObject)

디테일 패널의 표시될 데이터를 갖는 타겟 오브젝트로 일반적인 UObject를 상속한 클래스이다. 디테일 패널에서 수정하고 싶은 프로퍼티들을 정의해주면 된다.



#pragma once

#include "CoreMinimal.h"
#include "UObject/NoExportTypes.h"
#include "Animation/Skeleton.h"
#include "MyObject.generated.h"


UENUM(BlueprintType)
enum class EType : uint8
{
	Type1,
	Type2
};

UCLASS()
class MYPLUGIN_API UMyObject : public UObject
{
	GENERATED_BODY()

public:
	UMyObject() {}


	UPROPERTY(EditAnywhere, Category = "Voice Characteristics")
		EType Language;

	UPROPERTY(EditAnywhere, Category = "Conversion")
		FString SaveAssetTo;

	UPROPERTY(EditAnywhere, Category = "Conversion")
		USkeleton* TargetSkeleton;

	UPROPERTY(EditAnywhere, Category = "Conversion")
		bool bImportAudio;

	UPROPERTY(EditAnywhere, Category = "Conversion")
		bool bInsertPlaySoundNotify;

	UPROPERTY(EditAnywhere, Category = "FilesToDump")
		bool bPhoneme;

	UPROPERTY(EditAnywhere, Category = "FilesToDump")
		bool bAnimClip;

	UPROPERTY(EditAnywhere, Category = "FilesToDump")
		bool bConversionLog;
};



데이터 커스터마이징 (MyCustomization)

UMyObject에 정의된 데이터로 디테일 패널을 실질적으로 꾸며주는 부분이다.

CustomizeDetails 함수가 호출에서 디테일 패널을 꾸며주는 코드를 작성하면 된다.

CustomizeDetails는 디테일 패널이 생성되거나 수정사항이 생길 때 호출된다.



header

#pragma once

#include "CoreMinimal.h"
#include "IDetailCustomization.h"
#include "SlateBasics.h"

class UMyObject;
class MYPLUGIN_API MyCustomization : public IDetailCustomization
{
public:
	const FString DefaultPath = TEXT("/Game");

public:

	static TSharedRef<IDetailCustomization> MakeInsance();

	virtual void CustomizeDetails(IDetailLayoutBuilder& DetailBuilder) override;

	FReply OnSaveAssetPathBtnClicked();

	EAppReturnType::Type CreatePickAssetPathWidget(FString& AssetPath);

	void OnCheckImportAudio(ECheckBoxState State);

	void OnCheckInsertPlaySoundNotify(ECheckBoxState State);

private:
	TSharedPtr<STextBlock> SaveAssetPathBtnText;

	TSharedPtr<SPanel> InsertPlaySoundNotifyNameWidget;

	TSharedPtr<SPanel> InsertPlaySoundNotifyValueWidget;

	UMyObject* Target;

};





source

#include "MyCustomization.h"
#include "PropertyEditing.h"
#include "Engine/StaticMesh.h"
#include "MyObject.h"
#include "SMyAssetPathPicker.h"
#include "Widgets/Input/SCheckBox.h"

#define LOCTEXT_NAMESPACE "MyCustomization"

TSharedRef<IDetailCustomization> MyCustomization::MakeInsance()
{
	UE_LOG(LogTemp, Warning, TEXT("######################MakeInsance"));
	return MakeShareable(new MyCustomization);
}


void MyCustomization::CustomizeDetails(IDetailLayoutBuilder& DetailBuilder)
{
	UE_LOG(LogTemp, Warning, TEXT("###################### CustomizeDetails"));

	TArray<TWeakObjectPtr<UObject>> CustomizedObjects;
	DetailBuilder.GetObjectsBeingCustomized(CustomizedObjects);

	for (TWeakObjectPtr<UObject> Object : CustomizedObjects)
	{
		if (Object.IsValid())
		{
			Target = Cast<UMyObject>(Object);
			if (Target)
				break;
		}
	}

	if (Target)
	{
		UE_LOG(LogTemp, Warning, TEXT("##### Target is here!! #####"));
	}
	else
	{
		UE_LOG(LogTemp, Warning, TEXT("##### Target is null!! #####"));
	}

	TSharedRef<IPropertyHandle> LanguageProp = DetailBuilder.GetProperty("Language");
	TSharedRef<IPropertyHandle> SaveAssetToProp = DetailBuilder.GetProperty("SaveAssetTo");
	TSharedRef<IPropertyHandle> TargetSkeletonProp = DetailBuilder.GetProperty("TargetSkeleton");
	TSharedRef<IPropertyHandle> ImportAudioProp = DetailBuilder.GetProperty("bImportAudio");
	TSharedRef<IPropertyHandle> InsertPlaySoundNotifyProp = DetailBuilder.GetProperty("bInsertPlaySoundNotify");
	TSharedRef<IPropertyHandle> PhonemeProp = DetailBuilder.GetProperty("bPhoneme");
	TSharedRef<IPropertyHandle> AnimClipProp = DetailBuilder.GetProperty("bAnimClip");
	TSharedRef<IPropertyHandle> ConversionLogProp = DetailBuilder.GetProperty("bConversionLog");

	IDetailCategoryBuilder& VoiceCharacteristicsCategory =
		DetailBuilder.EditCategory("Voice Characteristics", FText::GetEmpty());

	IDetailCategoryBuilder& ConversionCategory = DetailBuilder.EditCategory("Conversion", FText::GetEmpty());

	DetailBuilder.HideProperty("SaveAssetTo");
	ConversionCategory.AddCustomRow(FText::FromString("ConversionSaveAssetTo"))
		.NameContent()
		[
			SaveAssetToProp->CreatePropertyNameWidget()
		]
	.ValueContent()
		[
			SNew(SButton)
			.OnClicked(this, &MyCustomization::OnSaveAssetPathBtnClicked)
		[
			SAssignNew(SaveAssetPathBtnText, STextBlock)
			.Text(FText::FromString(DefaultPath))
		.ToolTipText(FText::FromString(DefaultPath))
		.Font(IDetailLayoutBuilder::GetDetailFont())
		]
		];


	DetailBuilder.AddPropertyToCategory(TargetSkeletonProp);

	IDetailPropertyRow& ImportAudioRow = DetailBuilder.AddPropertyToCategory(ImportAudioProp);
	FDetailWidgetRow& ImportAudioWidgetRow = ImportAudioRow.CustomWidget();
	ImportAudioWidgetRow
		.NameWidget
		[
			ImportAudioProp->CreatePropertyNameWidget()
		]
	.ValueWidget
		[
			SNew(SCheckBox)
			.OnCheckStateChanged(this, &MyCustomization::OnCheckImportAudio)
		];

	IDetailPropertyRow& InsertPlaySoundNotifyRow = DetailBuilder.AddPropertyToCategory(InsertPlaySoundNotifyProp);

	FDetailWidgetRow& InsertPlaySoundNotifyWidgetRow = InsertPlaySoundNotifyRow.CustomWidget();
	InsertPlaySoundNotifyWidgetRow
		.NameWidget
		[
			SAssignNew(InsertPlaySoundNotifyNameWidget, SHorizontalBox)
			+ SHorizontalBox::Slot()
		.AutoWidth()
		[
			InsertPlaySoundNotifyProp->CreatePropertyNameWidget()
		]
		]
	.ValueWidget
		[
			SAssignNew(InsertPlaySoundNotifyValueWidget, SHorizontalBox)
			+ SHorizontalBox::Slot()
		.AutoWidth()
		[
			SNew(SCheckBox)
			.OnCheckStateChanged(this, &MyCustomization::OnCheckImportAudio)
		]
		];
	InsertPlaySoundNotifyNameWidget->SetVisibility(EVisibility::Hidden);
	InsertPlaySoundNotifyValueWidget->SetVisibility(EVisibility::Hidden);

	IDetailCategoryBuilder& FilesToDumpCategory = DetailBuilder.EditCategory("FilesToDump", FText::GetEmpty());


}

FReply MyCustomization::OnSaveAssetPathBtnClicked()
{
	FString Str = SaveAssetPathBtnText->GetText().ToString();
	UE_LOG(LogTemp, Warning, TEXT("#### OnSaveAssetPathBtnClicked ####"));
	EAppReturnType::Type RetType = CreatePickAssetPathWidget(Str);

	UE_LOG(LogTemp, Warning, TEXT("#### OnSaveAssetToBtnClicked ####  %s  !"), *Str);

	Target->SaveAssetTo = Str;
	SaveAssetPathBtnText->SetText(FText::FromString(Str));
	SaveAssetPathBtnText->SetToolTipText(FText::FromString(Str));

	return FReply::Handled();
}

EAppReturnType::Type MyCustomization::CreatePickAssetPathWidget(FString& AssetPath)
{
	FString PackageNameSuggestion = DefaultPath;
	FString Name;

	UE_LOG(LogTemp, Warning, TEXT("#### CreatePickAssetPathWidget ####"));
	TSharedPtr<SMyAssetPathPicker> PickAssetPathWidget =
		SNew(SMyAssetPathPicker)
		.Title(LOCTEXT("AssetPathPickerTitle", "Choose Your Location"))
		.DefaultAssetPath(FText::FromString(PackageNameSuggestion));

	EAppReturnType::Type RetType = PickAssetPathWidget->ShowModal();

	if (RetType == EAppReturnType::Ok)
	{
		AssetPath = PickAssetPathWidget->GetAssetPath().ToString();
	}

	UE_LOG(LogTemp, Warning, TEXT("#### CreatePickAssetPathWidget Return ####"));
	return RetType;
}


void MyCustomization::OnCheckImportAudio(ECheckBoxState State)
{
	if (State == ECheckBoxState::Checked)
	{
		InsertPlaySoundNotifyNameWidget->SetVisibility(EVisibility::All);
		InsertPlaySoundNotifyValueWidget->SetVisibility(EVisibility::All);
		Target->bImportAudio = true;
	}
	else if (State == ECheckBoxState::Unchecked)
	{
		InsertPlaySoundNotifyNameWidget->SetVisibility(EVisibility::Hidden);
		InsertPlaySoundNotifyValueWidget->SetVisibility(EVisibility::Hidden);
		Target->bImportAudio = false;
	}
}

void MyCustomization::OnCheckInsertPlaySoundNotify(ECheckBoxState State)
{
	if (State == ECheckBoxState::Checked)
	{
		Target->bInsertPlaySoundNotify = true;
	}
	else if (State == ECheckBoxState::Unchecked)
	{
		Target->bInsertPlaySoundNotify = false;
	}
}


#undef LOCTEXT_NAMESPACE



에디터 윈도우 (SMyWindow)

위에 정의한 UMyObject의 데이터를 표시해줄 수 있는 윈도우를 언리얼 에디터 상에 띄우기 위해, 프로퍼티 에디터를 이용하여 SWindow 클래스를 제작한다.





header

#pragma once

#include "CoreMinimal.h"
#include "Input/Reply.h"
#include "Widgets/SWindow.h"
#include "UObject/WeakObjectPtrTemplates.h"

class UMyObject;

class MYPLUGIN_API SMyWindow : public SWindow
{
public:
	SLATE_BEGIN_ARGS(SMyWindow) {}
	SLATE_END_ARGS()

	void Construct(const FArguments& InArgs);

	EAppReturnType::Type ShowModal();
private:

	FReply OnClickCancel();
	FReply OnClickAddFiles();
	void OnClosed(const TSharedRef<SWindow>& Window);

private:
	EAppReturnType::Type UserResponse;
	UMyObject* TargetObject;
};





source

#include "SMyWindow.h"
#include "MyObject.h"

#include "PropertyEditing.h"
#include "Modules/ModuleManager.h"
#include "Framework/Application/SlateApplication.h"
#include "SlateBasics.h"
#include "SlateExtras.h"
#include "Editor/EditorEngine.h"
#include "DesktopPlatformModule.h"	//"DesktopPlatform",
#include "IDesktopPlatform.h"
#include "Editor.h"

#define LOCTEXT_NAMESPACE "SMyWindow"

void SMyWindow::Construct(const FArguments& InArgs)
{
	// create detail view
	FDetailsViewArgs Args;
	Args.bHideSelectionTip = true;
	Args.bAllowSearch = false;

	// UMyObject를 프로퍼티 에디터 커스터마이징 타겟으로 잡는다.
	TargetObject = NewObject<UMyObject>();
	TargetObject->AddToRoot();
	TArray<UObject*> ObjectToView;
	ObjectToView.Add(TargetObject);

	FPropertyEditorModule& PropertyEditorModule =
		FModuleManager::GetModuleChecked<FPropertyEditorModule>("PropertyEditor");
	TSharedRef<IDetailsView> DetailView = PropertyEditorModule.CreateDetailView(Args);

	DetailView->SetObjects(ObjectToView);

	SWindow::Construct(
		SWindow::FArguments()
		.Title(NSLOCTEXT("PropertyEditor", "WindowTitle", "Property Editor"))
		.ClientSize(FVector2D(500, 650))
		[
			SNew(SBorder)
			.BorderImage(FEditorStyle::GetBrush(TEXT("PropertyWindow.WindowBorder")))
		[
			SNew(SVerticalBox)
			+ SVerticalBox::Slot()
		.FillHeight(1)
		.Padding(3)
		[
			DetailView
		]
	+ SVerticalBox::Slot()
		.AutoHeight()
		.Padding(3)
		[
			SNew(SVerticalBox)
			+ SVerticalBox::Slot() // Add user input block
		.Padding(2, 2, 2, 4)
		.AutoHeight()
		.HAlign(HAlign_Right)
		.VAlign(VAlign_Bottom)
		[
			SNew(SUniformGridPanel)
			.SlotPadding(FEditorStyle::GetMargin("StandardDialog.SlotPadding"))
		.MinDesiredSlotWidth(FEditorStyle::GetFloat("StandardDialog.MinDesiredSlotWidth"))
		.MinDesiredSlotHeight(FEditorStyle::GetFloat("StandardDialog.MinDesiredSlotHeight"))
		+ SUniformGridPanel::Slot(0, 0)
		[
			SNew(SButton)
			.Text(LOCTEXT("AddFiles", "Add Files(s)..."))
		.HAlign(HAlign_Center)
		.ContentPadding(FEditorStyle::GetMargin("StandardDialog.ContentPadding"))
		.OnClicked(this, &SMyWindow::OnClickAddFiles)
		]
	+ SUniformGridPanel::Slot(1, 0)
		[
			SNew(SButton)
			.Text(LOCTEXT("Cancel", "Cancel"))
		.HAlign(HAlign_Center)
		.ContentPadding(FEditorStyle::GetMargin("StandardDialog.ContentPadding"))
		.OnClicked(this, &SMyWindow::OnClickCancel)
		]
		]
		]
		]
		]
	);


	this->SetOnWindowClosed(FOnWindowClosed::CreateRaw(this, &SMyWindow::OnClosed));
}


FReply SMyWindow::OnClickCancel()
{
	UE_LOG(LogTemp, Warning, TEXT("#### OnClickCancel ####"));
	RequestDestroyWindow();
	return FReply::Handled();
}

FReply SMyWindow::OnClickAddFiles()
{
	UE_LOG(LogTemp, Warning, TEXT("#### OnClickAddFiles ####"));

	return FReply::Handled();
}


void SMyWindow::OnClosed(const TSharedRef<SWindow>& Window)
{
	UE_LOG(LogTemp, Warning, TEXT("#### OnClosed ####"));
	TargetObject->RemoveFromRoot();
}

EAppReturnType::Type SMyWindow::ShowModal()
{
	GEditor->EditorAddModalWindow(SharedThis(this));
	return UserResponse;
}


#undef LOCTEXT_NAMESPACE





플러그인 코드 (MyPlugin.cpp)

MyPlugin 코드에서 플러그인 버튼이 눌러졌을 때 SMyWindow를 띄우도록 한다.



#include "MyPlugin.h"
#include "MyPluginStyle.h"
#include "MyPluginCommands.h"
#include "Misc/MessageDialog.h"
#include "Framework/MultiBox/MultiBoxBuilder.h"

#include "MyPrimaryDataAsset.h"
#include "AssetRegistryModule.h"
#include "UObject/ConstructorHelpers.h"

#include "LevelEditor.h"
#include "EngineUtils.h"

#include "EditorAssetLibrary.h"
#include "MyCustomization.h"
#include "SMyWindow.h"

static const FName MyPluginTabName("MyPlugin");

#define LOCTEXT_NAMESPACE "FMyPluginModule"

FMyPluginModule::FMyPluginModule()
{

}

void FMyPluginModule::StartupModule()
{
	// This code will execute after your module is loaded into memory; the exact timing is specified in the .uplugin file per-module
	FMyPluginStyle::Initialize();
	FMyPluginStyle::ReloadTextures();

	FMyPluginCommands::Register();

	PluginCommands = MakeShareable(new FUICommandList);

	PluginCommands->MapAction(
		FMyPluginCommands::Get().PluginAction,
		FExecuteAction::CreateRaw(this, &FMyPluginModule::PluginButtonClicked),
		FCanExecuteAction());

	FLevelEditorModule& LevelEditorModule = FModuleManager::LoadModuleChecked<FLevelEditorModule>("LevelEditor");

	{
		TSharedPtr<FExtender> MenuExtender = MakeShareable(new FExtender());
		MenuExtender->AddMenuExtension("WindowLayout", EExtensionHook::After, PluginCommands, FMenuExtensionDelegate::CreateRaw(this, &FMyPluginModule::AddMenuExtension));

		LevelEditorModule.GetMenuExtensibilityManager()->AddExtender(MenuExtender);
	}

	{
		TSharedPtr<FExtender> ToolbarExtender = MakeShareable(new FExtender);
		ToolbarExtender->AddToolBarExtension("Settings", EExtensionHook::After, PluginCommands, FToolBarExtensionDelegate::CreateRaw(this, &FMyPluginModule::AddToolbarExtension));

		LevelEditorModule.GetToolBarExtensibilityManager()->AddExtender(ToolbarExtender);
	}


	FPropertyEditorModule& PropertyModule =
		FModuleManager::LoadModuleChecked<FPropertyEditorModule>("PropertyEditor");

	PropertyModule.RegisterCustomClassLayout(
		"MyObject", FOnGetDetailCustomizationInstance::CreateStatic(&MyCustomization::MakeInsance));

	InitConsoleCommand();
}

void FMyPluginModule::ShutdownModule()
{
	// This function may be called during shutdown to clean up your module.  For modules that support dynamic reloading,
	// we call this function before unloading the module.
	FMyPluginStyle::Shutdown();

	FMyPluginCommands::Unregister();
}

void FMyPluginModule::PluginButtonClicked()
{
	// Put your "OnButtonClicked" stuff here
	FText DialogText = FText::Format(
							LOCTEXT("PluginButtonDialogText", "Add code to {0} in {1} to override this button's actions"),
							FText::FromString(TEXT("FMyPluginModule::PluginButtonClicked()")),
							FText::FromString(TEXT("MyPlugin.cpp"))
					   );


	// SMyWindow를 띄운다.
	TSharedRef<SMyWindow> Window = SNew(SMyWindow);

	if (Window->ShowModal() == EAppReturnType::Ok)
	{
		UE_LOG(LogTemp, Warning, TEXT("#### OnExecuteFromAudioAction ShowModal Ok ####"));
	}
	else
	{
		UE_LOG(LogTemp, Warning, TEXT("#### OnExecuteFromAudioAction ShowModal Not Ok ####"));
	}

	//FMessageDialog::Open(EAppMsgType::Ok, DialogText);
}

void FMyPluginModule::AddMenuExtension(FMenuBuilder& Builder)
{
	Builder.AddMenuEntry(FMyPluginCommands::Get().PluginAction);
}

void FMyPluginModule::AddToolbarExtension(FToolBarBuilder& Builder)
{
	Builder.AddToolBarButton(FMyPluginCommands::Get().PluginAction);
}

// call this from start - ex)  gamemode being
void FMyPluginModule::InitConsoleCommand()
{
	FConsoleCommandWithArgsDelegate Delegate;

	Delegate.BindRaw(this, &FMyPluginModule::ConsoleCommand);

	IConsoleManager::Get().RegisterConsoleCommand(
		TEXT("insooneelifeCmd"),
		TEXT("insooneelife test cmd"), Delegate);
}

// this is static function
void FMyPluginModule::ConsoleCommand(const TArray<FString>& Args)
{
	UE_LOG(LogTemp, Warning, TEXT("#################"));

	FAssetRegistryModule& AssetRegistryModule =
		FModuleManager::LoadModuleChecked<FAssetRegistryModule>("AssetRegistry");
	FAssetData AssetData =
		AssetRegistryModule.Get().GetAssetByObjectPath(TEXT("/Game/Temp/MyPrimaryDataAsset.MyPrimaryDataAsset"));


	if (AssetData.IsValid())
	{
		UMyPrimaryDataAsset* Data = Cast<UMyPrimaryDataAsset> (AssetData.GetAsset());
		UE_LOG(LogTemp, Warning, TEXT("#######  Success %s #######"), *Data->ItemName);
	}
	else
	{
		CreateAsset();
		UE_LOG(LogTemp, Warning, TEXT("#######  Failed  #######"));
	}
}

void FMyPluginModule::CreateAsset()
{

	FString AssetName = TEXT("MyPrimaryDataAsset");
	FString PackageName = TEXT("/Game/Temp/");
	PackageName += AssetName;

	UPackage* Package = CreatePackage(NULL, *PackageName);
	Package->FullyLoad();

	UMyPrimaryDataAsset* NewAsset = NewObject<UMyPrimaryDataAsset>(
		Package, *AssetName, RF_Public | RF_Standalone | RF_MarkAsRootSet);

	NewAsset->ItemName = TEXT("NewAssetName");

	Package->MarkPackageDirty();
	FAssetRegistryModule::AssetCreated(NewAsset);

	FString PackageFileName = FPackageName::LongPackageNameToFilename(
		PackageName, FPackageName::GetAssetPackageExtension());

	bool bSaved = UPackage::SavePackage(
		Package,
		NewAsset,
		EObjectFlags::RF_Public | EObjectFlags::RF_Standalone,
		*PackageFileName,
		GError, nullptr, true, true, SAVE_NoError);

	TArray<UObject*> ObjectsToSync;
	ObjectsToSync.Add(NewAsset);
	GEditor->SyncBrowserToObjects(ObjectsToSync);


}

#undef LOCTEXT_NAMESPACE

IMPLEMENT_MODULE(FMyPluginModule, MyPlugin)

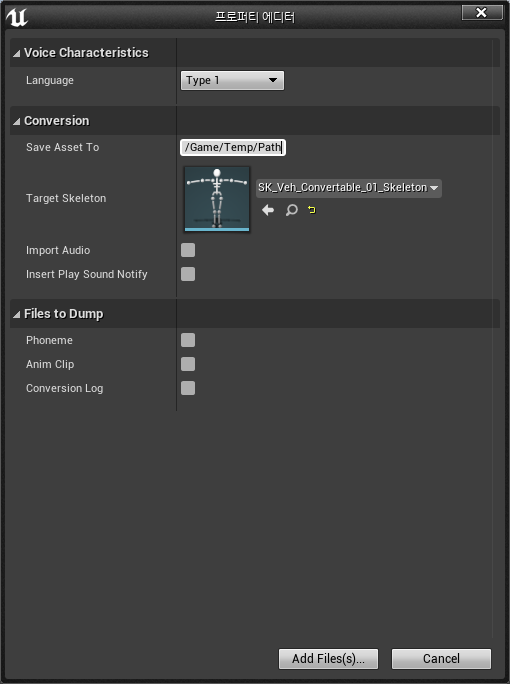

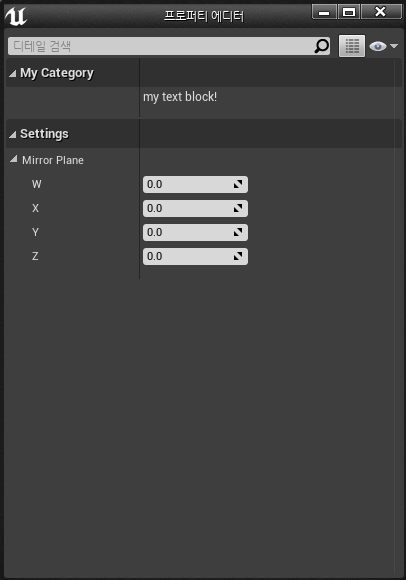

결과 화면
